VOX Pro Universal – 22kW Smart EV Charger
VOX Pro Universal – 22kW Smart EV Charger
COPAK VOX Pro Universal delivers up to 22kW smart AC charging through a Type-2 socket for a separate compatible charging cable. Features include mobile app control, OCPP connectivity, IP55 / IK10 protection and optional Dynamic Load Management. Delivers 100% rated performance at +55°C. Rated input current (max): 32A per phase on three-phase supply or 32A on single-phase supply.
AED 2,400.00
Free UAE Delivery
Complimentary delivery across all Emirates
Warranty Included
Genuine products backed by warranty and support
Free UAE Delivery
Secure Payment
Genuine Products
Warranty Included
Product Information
The COPAK VOX Pro Universal combines powerful AC charging with the flexibility of a Type-2 socket. Connect a separate compatible charging cable suited to your vehicle and preferred cable length, then disconnect and store it when charging is complete.
Designed for homes, workplaces and destination charging locations, VOX Pro Universal delivers up to 22kW on a suitable three-phase supply and supports single-phase installation. It maintains 100% rated performance at +55°C for dependable charging in demanding UAE conditions.
Flexible Type-2 Socket Connection
The Universal version features a socket rather than an attached charging cable. This allows you to select a compatible cable with the appropriate vehicle connector, length and current rating.
A separate compatible charging cable is required. Contact COPAK for help selecting the correct cable for your vehicle.
Smart Control and Connected Charging
Manage charging through the connected mobile app and view charging history, energy consumption and session information.
Built-in Ethernet and Wi-Fi connectivity support connection to compatible charging management platforms through OCPP 1.6J. Optional 4G connectivity provides an additional connection method.
Charging control options include the mobile app, physical button and plug-to-start. Optional RFID access allows charging access to be managed for authorised users.
Optional Dynamic Load Management
For private installations, Dynamic Load Management adjusts EV charging power according to the electrical capacity available at the property. This helps manage charging alongside other electrical loads.
The feature requires compatible monitoring equipment and configuration. COPAK provides site assessment, equipment selection and installation.
Integrated Electrical Protection
VOX Pro Universal incorporates 30mA AC and 6mA DC leakage detection, together with protection against:
- Over-current and short-circuit conditions
- Over-voltage and under-voltage
- Ground faults
- Electrical surges
- Excessive temperature
Durable Enclosure and Flexible Mounting
The IP55-rated enclosure provides protection against dust ingress and water jets, while IK10 impact resistance supports robust everyday use.
The charger supports wall installation or mounting on an optional pedestal, allowing COPAK to configure the installation for your parking space.
Technical Specifications
| Specification | VOX Pro Universal |
|---|---|
| Brand | COPAK |
| Model | IOCAH30-22S |
| Charger type | Smart AC EV charger |
| Maximum rated output | 22kW, three-phase |
| Supply configurations | Three-phase or single-phase |
| Rated input current (max), three-phase | 32A per phase |
| Rated input current (max), single-phase | 32A |
| Three-phase rated voltage | 400V ±20% |
| Frequency | 50 / 60Hz |
| Charging connection | Type-2 socket |
| Charging cable | Separate compatible cable required |
| Control methods | Mobile app, physical button and plug-to-start |
| RFID access | Optional; ISO14443 Type-A |
| Network connectivity | Ethernet and Wi-Fi |
| Cellular connectivity | Optional 4G |
| Charging platform connectivity | OCPP 1.6J |
| Energy meter | Integrated |
| Dynamic Load Management | Optional, with compatible monitoring equipment and configuration |
| Integrated leakage detection | 30mA AC + 6mA DC |
| Enclosure protection | IP55 |
| Impact resistance | IK10 |
| Operating temperature | −30°C to +55°C |
| Performance at +55°C | 100% rated performance |
| Storage temperature | −40°C to +70°C |
| Operating humidity | 5–95% RH, non-condensing |
| Mounting | Wall or optional pedestal |
| Dimensions (H × W × D) | 398 × 285 × 226mm |
Actual charging power depends on the vehicle’s onboard charger, the charging cable rating and the available electrical supply.
Installation and Support Across the UAE
COPAK provides charger selection, site assessment, installation, commissioning and ongoing support across the UAE.
For public-space charging installations in Dubai, contact COPAK for installation planning, applicable DEWA requirements and CPO services.
Contact COPAK: +971 50 536 7856
Email: sales@copak-technical.com
Main product image alt text

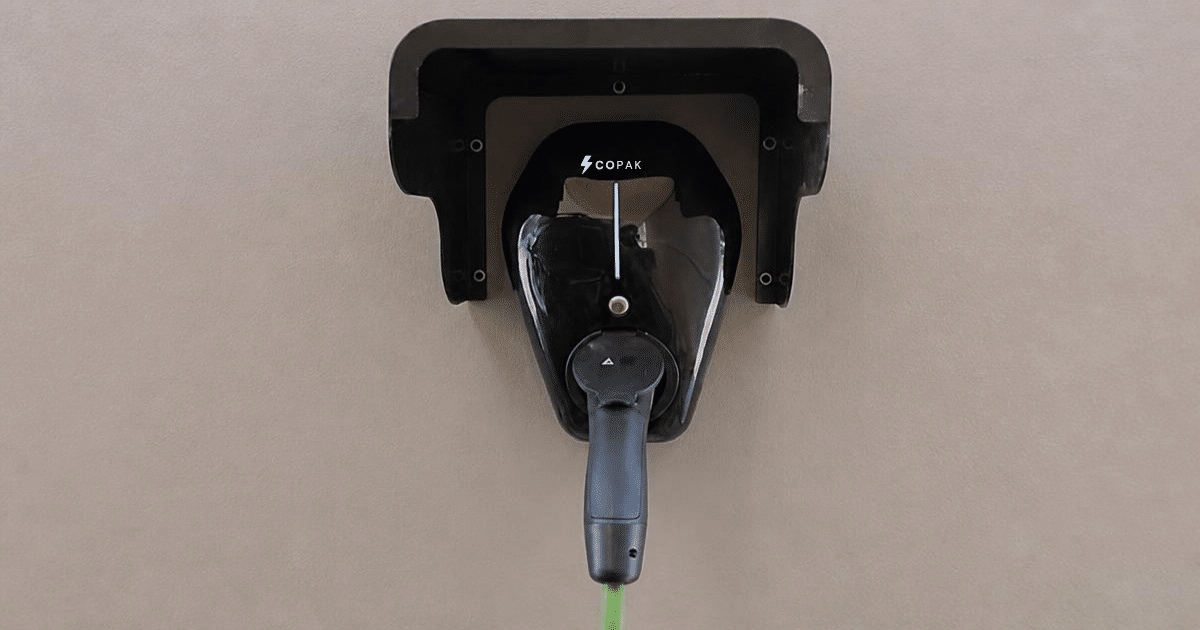

COPAK VOX Pro Universal 22kW smart EV charger with Type-2 socket and LED status indicator.
| Weight | 4.3 kg |
|---|---|
| Dimensions | 22.6 × 28.5 × 39.8 cm |
| EV Specification | GCC Specs EV's |
| Warranty | 36 Months Warranty |
