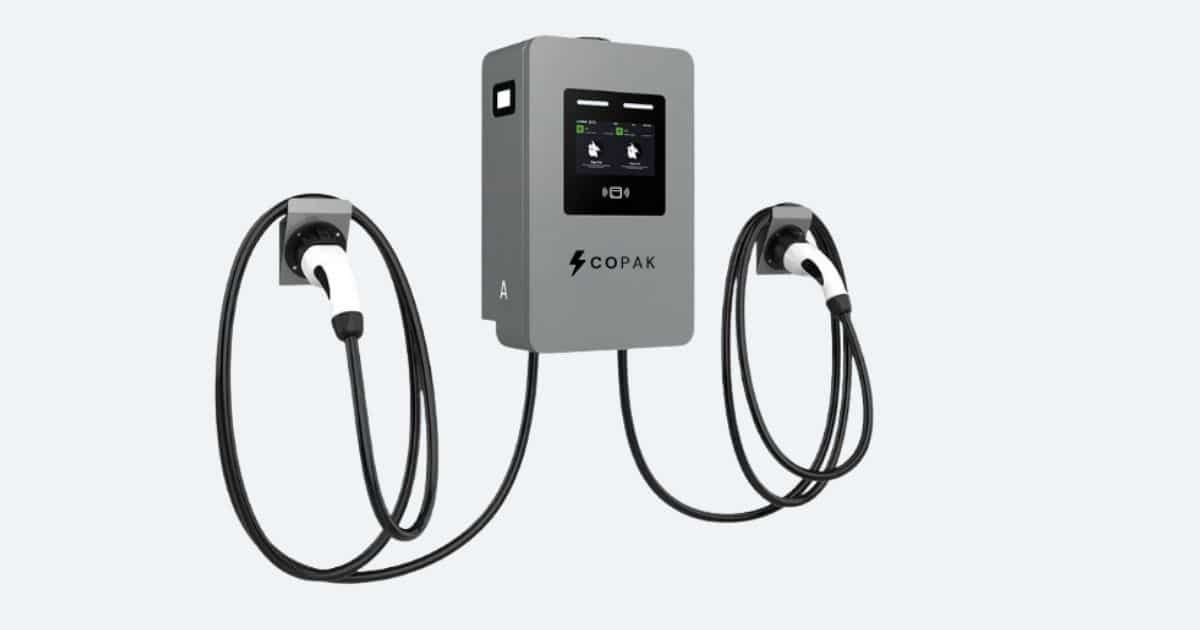

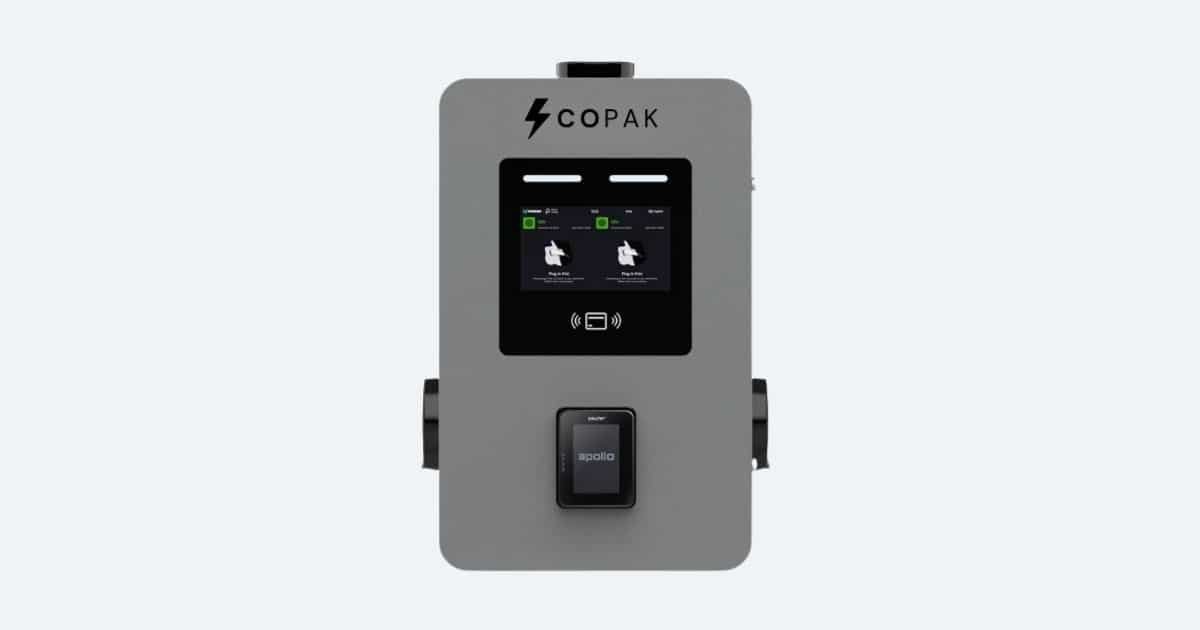

MAG Duo Cable Dual 22kW Wall EV Charger
AED 8,500.00
Dual-outlet smart AC charger with two attached 5m Type-2 cables and up to 22kW per outlet. App control, OCPP and configurable DLM, with full performance at +55°C. Rated input current (max): 64A per phase or 64A single-phase.
Warranty: 36 months.
Need help choosing? Ask COPAK on WhatsApp
PRODUCT DETAILS
Specifications & Product Information
COPAK MAG Duo Cable charges two vehicles from one wall-mounted unit, with up to 22kW per outlet and two attached 5m Type-2 cables. Suitable for homes, workplace parking and commercial properties, with smart controls and load management.
PRODUCT FEATURES
Practical Features for Everyday Use
Two Charging Outlets
Two Type-2 charging connections provide up to 22kW per outlet on a suitable three-phase supply.
Dynamic Load Balancing
Balances charging demand with available electrical capacity for power-limited locations.
Connected Control
Manage charging through the mobile app, with OCPP connectivity for charging-platform integration.
Rated to +50°C
Official operating-temperature rating: −30°C to +50°C. COPAK testing has also shown 100% rated performance at +55°C. Stainless steel body with IP55 protection.
PRODUCT SPECIFICATIONS
MAG Duo Cable Specifications
| Specification | Details |
|---|---|
| Brand | COPAK |
| Model | IOCAW31-22TE-RW — MAG Duo Cable |
| Maximum output | 2 × 22kW three-phase or 2 × 7kW single-phase |
| Power input | 44kW |
| Rated input current (max), three-phase | 64A per phase |
| Rated input current (max), single-phase | 64A |
| Rated voltage, three-phase | 400V AC ±20% |
| Rated voltage, single-phase | 240V AC ±20% |
| Frequency | 50Hz |
| Maximum current per charging point | 32A |
| Charging connectors | 2 × Type-2 (IEC 62196) |
| Attached cables | 2 × 5m |
| Control | 7-inch touchscreen, mobile app, button, RFID and plug-to-start |
| Connectivity | 4G, Wi-Fi, Ethernet and Bluetooth |
| OCPP | OCPP 1.6J; OCPP 2.0.1 depends on firmware configuration |
| Load management | Configured with compatible monitoring equipment; solar-aware control with appropriate configuration |
| Protection | 30mA AC and 6mA DC leakage detection; overcurrent, short-circuit, over/undervoltage, ground fault, surge and temperature protection |
| Body | Stainless steel 304 |
| Ingress / impact protection | IP55 / IK10 |
| Operating temperature | −30°C to +50°C |
| Metering and records | Individual energy metering, charging history and session information |
| COPAK test result at +55°C | 100% rated performance |
| Status indicators | LED indicators |
| Standards / certification | CE / IEC-EN 61851 series / IEC 62196-2; TUV |
| Vehicle connection | EVs with a compatible Type-2 AC charging inlet |
| Mounting | Wall-mounted; optional pedestal accessory |
| Weight | 25kg |
| Shipping | Boxed and securely packed with tracking |
| Included items | Dual wall charger with two Type-2 charging cables; user manual and installation guide |
| Warranty | 36 months from the invoice date |
Actual charging power depends on the vehicles and site supply. Contact COPAK for professional installation, load-management configuration and applicable CPO services.
Additional information
| Weight | 25 kg |
|---|---|
| Dimensions | 40 × 50 × 15 cm |
| EV Specification | GCC Specs EV's |
| Warranty | 36 Months Warranty |
Warranty and delivery
Warranty starts from the invoice date. For warranty claims and delivery enquiries, email support@copak-technical.com.
Free standard UAE delivery on orders of AED 2,600 or more after discounts, including VAT and excluding delivery charges. Standard delivery is also free when a charger is purchased with COPAK installation. Express delivery is always paid.
