The 7kW Type-2 Portable Charger for Electric Cars is designed for convenience and speed, making it the perfect portable EV charger for home, office, or travel use. Compatible with GCC spec electric cars, this durable and efficient unit ensures you can power up anytime, anywhere, without relying on fixed charging stations.

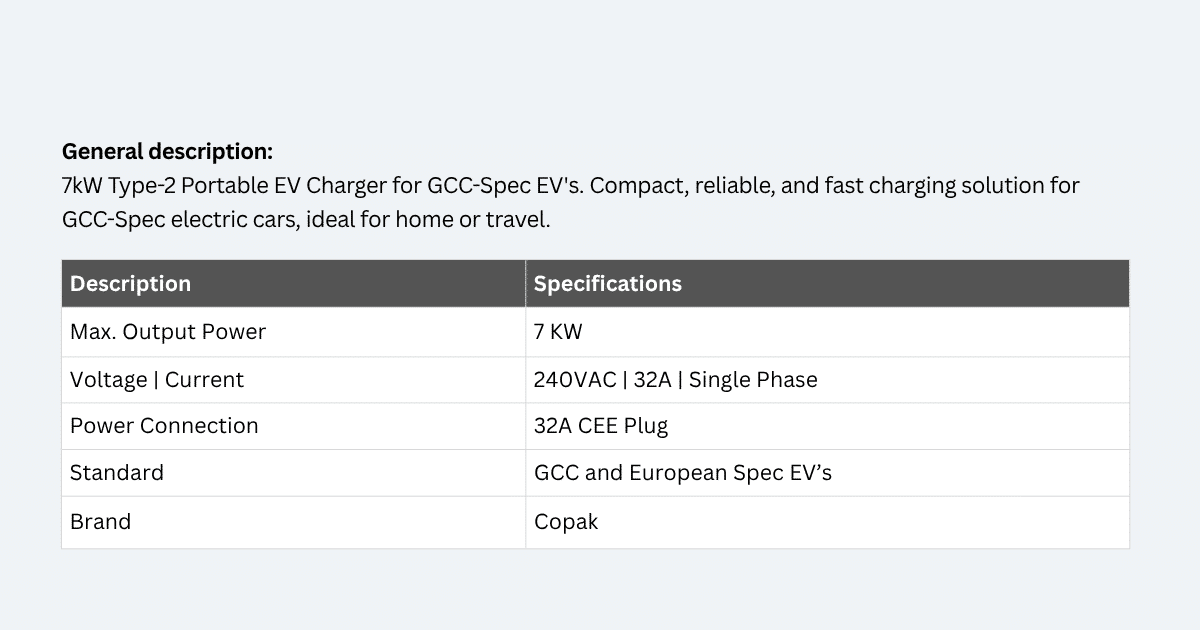

Electrical Specifications:

• Input Voltage: 230V AC ±15%, 50Hz (Single-phase)
• Max Output Power: 7.4kW (32A continuous)
• Connector Type: Type-2 (IEC 62196 standard)
• Cable: 5m tethered premium rubber cable, UL94 V-0 rated insulation
• Operating Temperature Range: -30°C to +50°C
• Enclosure Rating: IP65 – military-grade weatherproof housing

Safety Features:

• Overvoltage / Undervoltage Protection
• Overcurrent & Short-Circuit Protection
• Over-temperature Shutdown
• Ground Fault Detection (6mA DC)

Key Features:

• High-Speed Portable Charging: Provides full 7.4kW charging power through a reliable 32A CEE plug
• 5m Tethered Type-2 Cable: Heavy-duty cable with Type-2 connector compatible with GCC & EU EVs such as Tesla, Mercedes, BMW, and more
• Adjustable Current Control: Easily switch charging current via front touch button for flexible power management
• Scheduled Charging: Program charging start/stop times directly from the front panel to optimize electricity use
• Rugged IP65 Housing: Military-grade protection ensures safe and durable performance in harsh environments
• Compact and Portable: Lightweight (3.8kg) and compact (350×200×80mm) with integrated carry handle for ease of transport

Package Contents:

• Main charger unit with CEE 32A plug
• Protective storage bag
• Quick-start guide

Installation Requirements:

• Must be installed by a certified electrician:
  • CEE 32A blue outlet
  • 6mm² copper wiring
  • 32A MCB circuit breaker
• Not compatible with standard household wall sockets
