The 7kW GBT Portable Charger is designed for Chinese spec EVs, offering a fast and convenient charging solution for GB/T standard vehicles at home or on the go. Compact, durable, and easy to use, this EV charger ensures efficient performance wherever you need it.

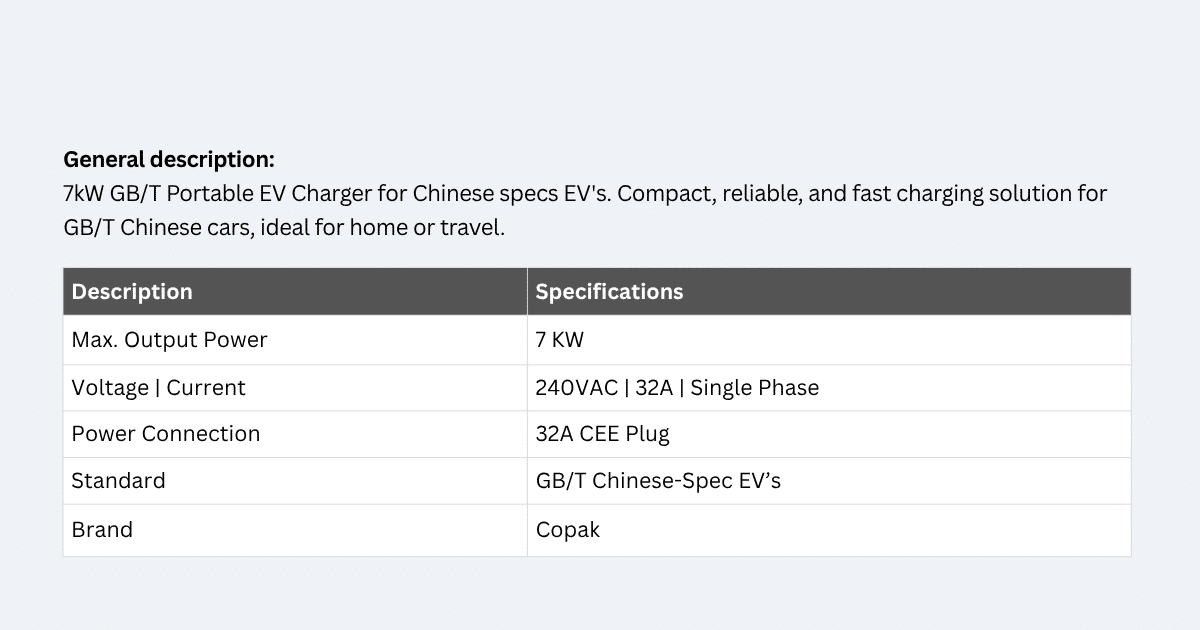

Electrical Specifications:

• Input Voltage: 230V AC ±15%, 50Hz (Single-phase)
• Max Output Power: 7.4kW (32A continuous)
• Connector Type: GB/T (Chinese standard)
• Cable: 5m tethered premium rubber cable, UL94 V-0 rated insulation with GB/T connector
• Operating Temperature Range: -30°C to +50°C
• Enclosure Rating: IP65 – military-grade weatherproof housing

Safety Features:

• Overvoltage / Undervoltage Protection
• Overcurrent & Short-Circuit Protection
• Over-temperature Shutdown
• Ground Fault Detection (6mA DC)

Key Features:

• High-Speed Portable Charging: Provides full 7.4kW power through a rugged 32A CEE plug for fast, reliable charging
• 5m Tethered GB/T Cable: Heavy-duty cable with GB/T connector compatible with all Chinese-spec EVs such as BYD, NIO, XPeng, and more
• Adjustable Current Control: Choose between 6A, 10A, 16A, or 32A charging current via intuitive front touch buttons
• Scheduled Charging: Delay start and stop times easily with the user-friendly interface to optimize energy usage and costs
• Rugged & Safe Design: IP65-rated enclosure with 6mA DC leakage protection for safe operation in harsh environments
• Compact & Portable: Lightweight (3.8kg) and compact (350×200×80mm) with a built-in carry handle for easy transport

Package Contents:

• Portable 7kW GB/T EV Charger with CEE 32A Plug
• 5m Tethered GB/T Charging Cable
• Protective Storage Bag
• Quick-Start User Guide

Installation Requirements:

• Must be installed by a certified electrician:
  • CEE 32A blue outlet
  • 6mm² copper wiring
  • Dedicated 32A MCB circuit breaker
• Not compatible with standard household outlets
