Electrical Specifications:

• Input Voltage: 400V AC ±15%, 50Hz (Three-phase)
• Output Power: 22kW max (32A per phase)
• Connector Type: Type 2 Socket (IEC 62196)
• Protections: Over-voltage, under-voltage, overcurrent, short-circuit, overheating
• Operating Temperature: -30°C to +50°C
• Dimensions: 350 x 250 x 120 mm (HxWxD)
• Weight:2 kg

Key Features:

• High-Speed Charging: 22kW three-phase fast charging for faster turnaround
• Universal Socket: Type 2 socket design (use any standard Type 2 charging cable)
• Smart Control: Monitor, schedule, and control charging via mobile app (WiFi)
• OCPP 1.6 Support: Seamless integration with commercial charging platforms
• Weather Resistant: IP54-rated for indoor and outdoor use
• LED Status Display: Visual indication of charging activity and system status

Smart Functions:

• Remote charging start/stop
• Real-time energy consumption tracking
• Multi-user access control and authentication
• Over-the-air firmware updates (OTA)

Vehicle Compatibility:

• EV Specification: GCC Specs EV’s
• Compatible with: All Type 2 cable EVs including Tesla (with adapter), BMW, Audi, Mercedes-Benz, Volkswagen, and more

Applications:

• Residential driveways and garages
• Office buildings and commercial parking areas
• EV fleets, depots, and apartment complexes

Installation Notes:

• Requires three-phase electrical supply
• Professional installation recommended

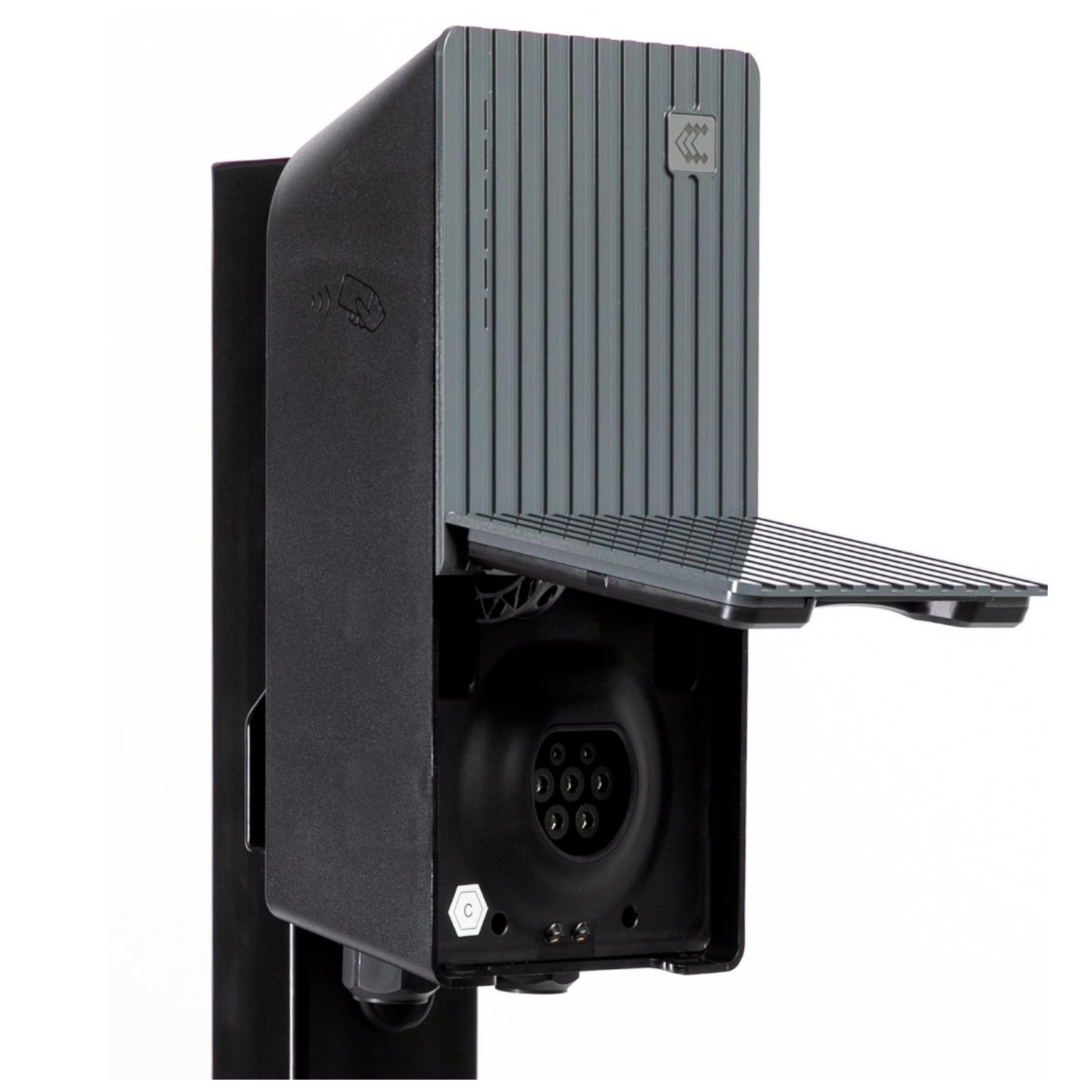

• Supports wall or pedestal mounting (accessory sold separately)

Package Contents:

• 1x Teltonika 22kW Socket-Type Wallbox Charger
• 1x User manual

Additional Information:

• Warranty: 3 Years manufacturer warranty
• Shipping: Secure packaging with tracking
• Note: Charging cable not included. Compatible with all standard Type 2 cables
