22kW Type-2 Smart Wallbox EV Charger | Timxon | 5M Tethered Cable | Cloud App Control | GCC Specs Compatible | Three-Year Warranty
22kW Type-2 Smart Wallbox EV Charger | Timxon | 5M Tethered Cable | Cloud App Control | GCC Specs Compatible | Three-Year Warranty
22kw smart wallbox ev charger by Copak
22kw smart wallbox ev charger by Copak
22kw smart wallbox ev charger by Copak
22kW Type-2 Smart Wallbox EV Charger | Timxon | 5M Tethered Cable | Cloud App Control | GCC Specs Compatible | Three-Year Warranty

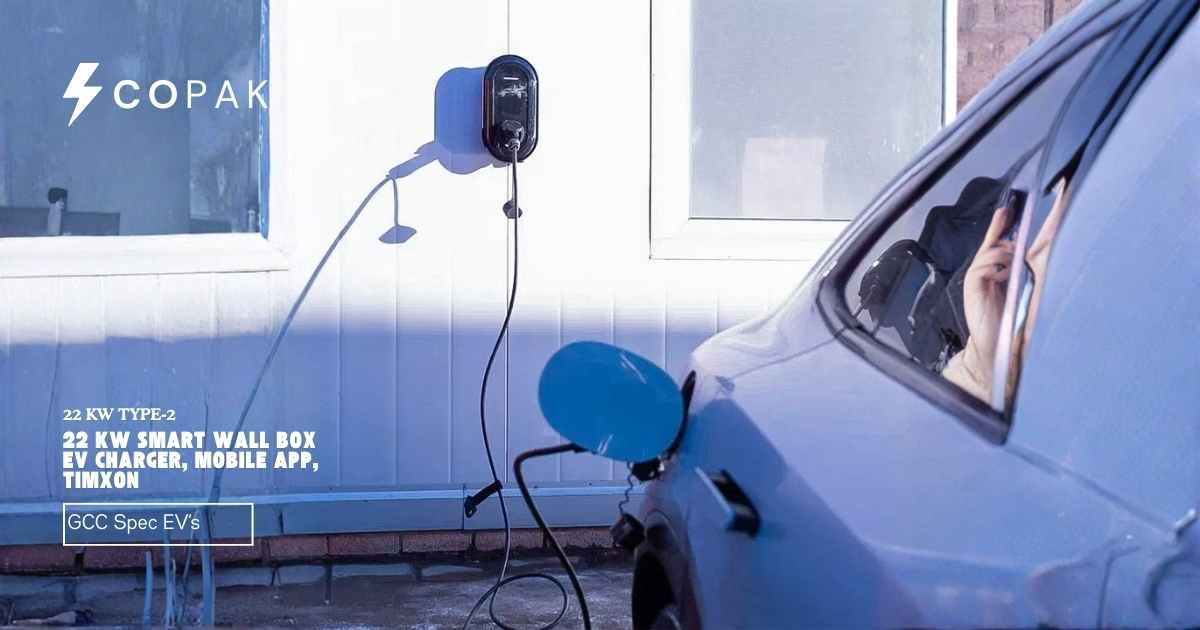

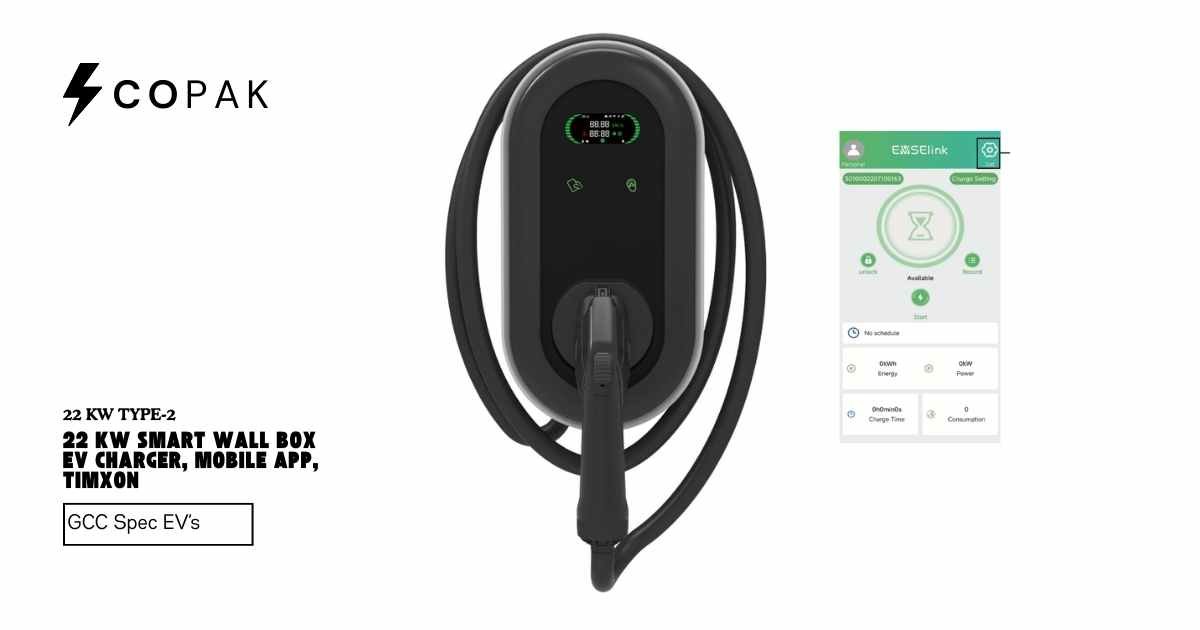

The Smart 22kW Type-2 Wallbox Charger by Timxon offers fast, efficient charging for GCC Specs electric vehicles. It features 22kW three-phase output and a 5-meter tethered cable, ideal for both residential and commercial use. With WiFi connectivity and a cloud-based mobile app, users can remotely manage charging, schedule sessions, and track energy consumption. Built with IP54-rated weatherproofing and certified safety features, it delivers performance and reliability in all environments.

د.إ 1,800.00

[dsm_icon_list list_layout="horizontal" list_space_between="14px" list_padding="|0px||0px|false|true" _builder_version="4.27.4" _module_preset="default" width="100%" max_width="100%" module_alignment="left" custom_margin="||9px|||" global_colors_info="{}"][dsm_icon_list_child text="Free Delivery" font_icon="||fa||900" icon_color="#160000" icon_padding="10px" icon_font_size="25px" icon_padding_tablet="10px" icon_padding_phone="10px" icon_padding_last_edited="on|desktop" icon_font_size_tablet="25px" icon_font_size_phone="20px" icon_font_size_last_edited="on|phone" _builder_version="4.27.4" _module_preset="default" text_font="--et_global_heading_font||||||||" text_text_color="#0a0a0a" text_font_size="14px" text_font_size_tablet="14px" text_font_size_phone="14px" text_font_size_last_edited="on|desktop" global_colors_info="{}"][/dsm_icon_list_child][dsm_icon_list_child text="Fast Delivery" font_icon="||fa||900" icon_color="#160000" icon_padding="10px" icon_font_size="25px" icon_padding_tablet="10px" icon_padding_phone="10px" icon_padding_last_edited="on|desktop" icon_font_size_tablet="25px" icon_font_size_phone="20px" icon_font_size_last_edited="on|phone" _builder_version="4.27.4" _module_preset="default" text_font="--et_global_heading_font||||||||" text_text_color="#0a0a0a" text_font_size="14px" text_font_size_tablet="14px" text_font_size_phone="14px" text_font_size_last_edited="on|desktop" global_colors_info="{}"][/dsm_icon_list_child][dsm_icon_list_child text="Personal Advice" font_icon="||fa||900" icon_color="#160000" icon_padding="10px" icon_font_size="25px" icon_padding_tablet="10px" icon_padding_phone="10px" icon_padding_last_edited="on|desktop" icon_font_size_tablet="25px" icon_font_size_phone="20px" icon_font_size_last_edited="on|phone" _builder_version="4.27.4" _module_preset="default" text_font="--et_global_heading_font||||||||" text_text_color="#0a0a0a" text_font_size="14px" text_font_size_tablet="14px" text_font_size_phone="14px" text_font_size_last_edited="on|desktop" global_colors_info="{}"][/dsm_icon_list_child][dsm_icon_list_child text="Installation Service" font_icon="||divi||400" icon_color="#160000" icon_padding="10px" icon_font_size="25px" icon_padding_tablet="10px" icon_padding_phone="10px" icon_padding_last_edited="on|desktop" icon_font_size_tablet="25px" icon_font_size_phone="20px" icon_font_size_last_edited="on|phone" _builder_version="4.27.4" _module_preset="default" text_font="--et_global_heading_font||||||||" text_text_color="#0a0a0a" text_font_size="14px" text_font_size_tablet="14px" text_font_size_phone="14px" text_font_size_last_edited="on|desktop" global_colors_info="{}"][/dsm_icon_list_child][/dsm_icon_list][dsm_button button_one_text="Inquire Installation" button_one_url="#inquiry_form" button_one_lightbox_close_color="#014a99" button_one_lightbox_max_width="520px" button_two_text="Call us" button_two_url="tel:971505367856" button_alignment="left" separator_gap="0px" button_alignment_tablet="left" button_alignment_phone="center" button_alignment_last_edited="on|phone" _builder_version="4.27.4" _module_preset="default" separator_text_text_color="#016ab5" separator_text_font_size="31px" custom_button_one="on" button_one_text_size="14px" button_one_text_color="#FFFFFF" button_one_bg_color="#016ab5" button_one_border_radius="30px" button_one_font="|700|||||||" button_one_icon="$||divi||400" button_one_custom_margin_tablet="" button_one_custom_margin_phone="|0px||0px|false|true" button_one_custom_margin_last_edited="on|phone" button_one_custom_padding="6px|25px|6px|25px|true|true" button_one_custom_padding_tablet="6px||6px||true|true" button_one_custom_padding_phone="8px|15px|8px|15px|true|true" button_one_custom_padding_last_edited="on|desktop" custom_button_two="on" button_two_text_size="14px" button_two_text_color="#FFFFFF" button_two_bg_color="#016ab5" button_two_border_radius="30px" button_two_font="|700|||||||" button_two_icon="$||divi||400" button_two_custom_margin="|||10px|false|false" button_two_custom_margin_tablet="|||10px|false|false" button_two_custom_margin_phone="|||5px|false|false" button_two_custom_margin_last_edited="on|phone" button_two_custom_padding="6px|25px|6px|25px|true|true" button_two_custom_padding_tablet="6px|25px|6px|25px|true|true" button_two_custom_padding_phone="8px|15px|8px|15px|true|true" button_two_custom_padding_last_edited="on|phone" background_layout="dark" custom_margin="0px||0px||true|false" custom_padding="0px|0px|0px|0px|true|true" button_one_text_size_tablet="14px" button_one_text_size_phone="12px" button_one_text_size_last_edited="on|phone" button_two_text_size_tablet="14px" button_two_text_size_phone="12px" button_two_text_size_last_edited="on|desktop" global_colors_info="{}"][/dsm_button]

Product Information

Electrical Specifications:

  • Power Output: 22 kW (3-phase, Max. 32A per phase)
  • Input Voltage: 400V AC, 50Hz
  • Charging Cable: 5-meter Type-2 Tethered (IEC 62196)
  • Protections: Over-voltage, over-current, short-circuit, 30mA RCD, 6mA DC Earth Leakage

Key Features:

  • Smart Control: WiFi-enabled for remote charging via a free cloud-based mobile app

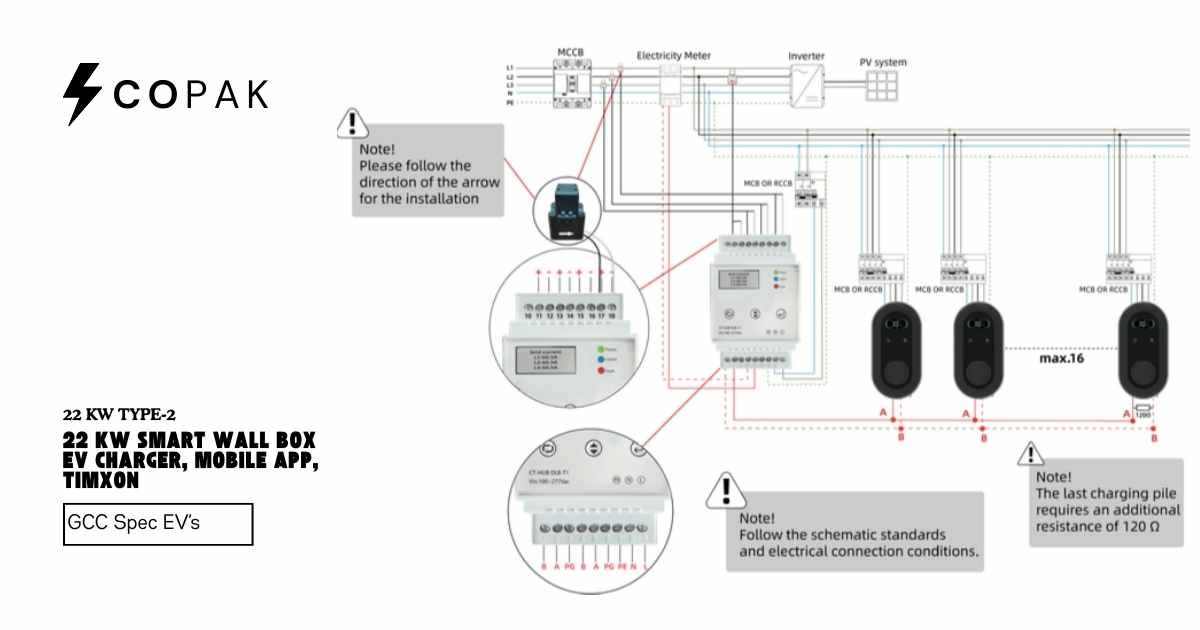

  • Smart Dynamic Load Balancing: Enables optimized car charging even in power-limited environments.
  • RFID Card Reader: Allows an extra optional safety feature for user restrictions.
  • LCD Display: LCD Display provides real-time information about charging power, consumed energy during charging
  • Weatherproof Design: IP55-rated for indoor and outdoor installations
  • User-Friendly: LED indicators, intuitive interface, and easy installation
  • Certified Safe: Compliant with IEC 61851 safety standards, TUV, CE
  • OCPP Compatible: Ready for smart grid and backend system integration, OCPP 1.6

Vehicle Compatibility:

  • EV Specification: GCC Specs EVs
  • Connector Type: Type-2 (IEC 62196)
  • Compatible Brands: Audi, BMW, Mercedes-Benz, Porsche, Tesla, and more

Applications:

  • Best as both a Commercial and Home EV Charger
  • Office parking lots and commercial buildings

Mounting Options:

  • Wall-mounted (standard)
  • Pedestal-mounted (optional accessory)
  • Professional installation recommended

Package Contents:

  • Wallbox 22kW Type-2 EV Charger
  • Wall mounting bracket and hardware
  • User manual and installation guide

Additional Information:

  • Dimensions: 350 x 250 x 120 mm
  • Weight: 5.5 kg
  • Warranty: 3-year warranty
  • Shipping: Boxed and safely packed with tracking

Additional Information

Weight5.5 kg
Dimensions35 × 25 × 12 cm
EV Specification

GCC Specs EV's

Warranty

36 Months Warranty
